About Indian Railways and Achievement Of Indian Railways

  • Indian Railways is the backbone of long distance passenger transport in India with a network that spans more than 66030 km, making it the world’s third largest rail network and the fourth largest rail freight carrier.
  • The Railways runs 12,000 trains connecting more than 8000 stations and carrying 23 million passengers, and over 7000 freight trains, carrying 3 million tonnes of freight every day.
  • Indian Railways transports 90% of the total coal moved in the country, supplying 50% of the power in India.
  • Forty nine percent of the routes are electrified with 25 KV AC electric traction while thirty three percent of them are double or multi-tracked.
  • Indian Railways started six pilgrims’ special tourist trains to cover Hindu Pilgrim Centres, Jain Pilgrim Centres and Sikh Pilgrim Centres. More different pilgrim Centres being planned in subsequent phases.
  • In Indian Railways, First ‘Green’ DEMU train introduced on Northern Railway to run between Rewari and Rohtak section.
  • railwaylogo
  • DEMU factory at Haldia with a production capacity: 400 coaches/annum was commissioned in January 2015 and Mid-life Rehabilitation Workshop with a capacity 250 coaches/annum for coaches at Jhansi completed was commissioned in April 2015.
  • Construction of Electric Loco Assembly & Ancillary Unit of Chittranjan Locomotive Works (CLW) at Dankuni in West Bengal has been completed.
  • Modern LHB Coach manufacturing facility has been commissioned at ICF Chennai.
  • Foundation stone has been laid for setting up of Traction Alternator Factory at Vidisha to manufacture 100 traction alternators per annum of high horse power diesel locomotives, which were earlier being imported.
  • Rail Wheel Plant at Bela near Chhapra has been commissioned and regular production of cast wheels for rolling stock has commenced. The installed capacity of the plant is 1 lakh wheels per annum. A forged wheel factory at Raebareli by Rashtriya Ispat Nigam Limited has also been setup.
  • Railways singed MOU to set up its own Railway Design Centre in collaboration with National Institute of Design (NID).
  • Indian Railways to use Solar Energy. 30 KW Solar Plant has been commissioned at roof top of Rail Bhawan at New Delhi. Katra Station now solar powered.
  • Three separate MOUs were signed with the states of Orissa, Jharkand and Chhatisgarh for critical coal connectivity projects to improve transportation of coal.
  • Indian Railways and Ministry of Water Resources to jointly work for creating logistics hubs with rail connectivity on National Waterways.
  • Electrification contract for 945 km of Western DFC awarded.
  • Interim Report of feasibility study by Japan for Bullet Train on Mumbai-Ahemdabad corridor received. The final report expected in June/July 2015. China to undertake feasibility study of introducing Bullet Train on New Delhi-Chennai corridor.
  • Indian Railways lent helping hand during the Nepal earthquake tragedy by providing ‘Rail Neer’ bottles and by transporting Nepal evacuees. Similarly, Railways also helped during the J&K floods. Railways were in the forefront in extending help to the Indian nationals returning from Yemen also.
  • Mumbai-Ahmedabad high speed rail project (Bullet Train) has been sanctioned at a total cost of INR 97,636 crores.
  • The Mumbai–Ahmedabad high-speed rail corridor is an under-construction high-speed rail line connecting the cities of Ahmedabad, Gujarat, and India's economic hub Mumbai, Maharashtra. It will be India's first high-speed rail line.
  • Construction of the corridor is expected to begin by June 2018, and the first bullet train is scheduled to leave for its first run on 15 August 2022. The corridor will use E5 Series Shinkansen, and will be operated by JR East.
  • India's first high-speed rail line (First bullet train) covers the line length of 508 Kms (316 mi) with 1,435 mm (4 ft 8 ½ inches – Standard gauge) of track gauge and Electrification specification is 25 KV AC, 50 Hz, Overhead Catenary.
  • India's first high-speed rail line (First bullet train) would be operated at 320 km/h (200 mph) speed.
  • Most of the corridor of India’s First bullet train will be elevated, except for a 21 km underground tunnel between Thane and Virar, of which 7 km will be undersea. The undersea tunnel was chosen to avoid damaging the thick vegetation present in the area. The corridor will begin at the underground station in the Bandra-Kurla Complex in Mumbai, and then traverse 21 km underground before emerging above ground at Thane.
  • India’s First bullet train will have a passenger capacity between 1,300 and 1,600 passengers.
  • Biggest ‘Make in India’ initiative with JVagreements worth INR 40,000 crores signed between Ministry of Railways and M/S Alstom Manufacturing India for setting up an Electric locomotive factory at Madhepura and with GE Global Sourcing India Pvt. Ltd for setting up a Diesel locomotive factory in Marhowra for rolling stock manufacturing (November 2015).
  • M/s GE Diesel Locomotive Pvt. Ltd. is setting up a Diesel Locomotive Factory (DLF) at Marhaura, Saran district, Bihar for manufacture and supply of 1000 high power Diesel Electric Locomotives over a period of 10 years. GE is also setting up a locomotive maintenance unit (one of two) at Roza (Shahjahanpur, UP) to service the locomotive factory coming up in Marhaura. M/s ALSTOM is setting up an Electric locomotive factory at Madhepura, Bihar for manufacture and supply of 800 high horse power (12,000HP) electric locomotives over 11 years.
  • 2828 km of Broad Gauge lines commissioned in FY 2015-16 which is highest ever & 1983 km of Broad Gauge lines in FY 2014-15 against an average of 1528 km during 2009-14.
  • During 2014-16, 3105 RKM have been electrified, which is an average of 1552.5 RKM/annum as against 1236 RKM/annum during 2009-14.
  • 1,098 RKM Optical Fibre Cables (OFC) have been laid in FY15-16. The total OFC network commissioned by Indian Railways is 48,818 RKM OFC enabling high speed communication network over Indian Railways.

Railway Products

All
Electric Locomotive
Diesel Locomotive
Electric Multiple Unit
TRC 1000 MN-UG
Features

TRC 1000 MN-UG

Features

W type configuration, three cylinder, two-stage, oil-splash lubricated, air-cooled and direct coupled.

Technical Specification

Free Air Delivery 1000 lpm (35.31 cfm)
Working Pressure 10.5 Kg/cm2
Overall Dimension (L x B x H) 1120 x 770 x 925 mm
Weight 450 Kg ( approx.)

Key features

  • Upgraded version of TRC1000MN
  • Robust in design with enhanced performance and less maintenance
  • These compressors are used in conventional loco model WAP4, WAG5 and WAG7 locomotives manufactured by Chittaranjan Locomotives Works, Chittaranjan & BHEL, Jhansi
  • Unique 'Disc Type Coupling’ arrangement which requires very less attention and can take larger misalignment
  • Efficient air filtration system ensures higher compressor efficiency and low noise level
RR 80101
Features

RR 80101

Features

W-type configuration, three cylinder, two-stage, forced lubrication, air-cooled and direct coupled.

Technical Specification

Free Air Delivery 5663 lpm (200 cfm)
Working Pressure 10 Kg/cm2
Overall Dimension (L x B x H) 1315 x 1374 x 1015 mm
Weight 750 Kg ( Approx.)

Key features

  • Upgraded version of LG3 CDB for higher reliability and low life cycle cost
  • Designed to meet the latest maintenance schedule requirement of Indian Railways of M24
  • Introduced Hexagonal deep dense finned cylinders for better heat dissipation
  • Compact breather
  • Positive locking arrangement for counter weight in crankshaft
TRC 2507
Features

TRC 2507

Features

V-type configuration, two cylinder two-stage, splash lubrication, air-cooled and V-belt drive

Technical Specification

Free Air Delivery 2600 lpm ( 91.82 cfm)
Working Pressure 7 Kg/cm2
Overall Dimension (L x B x H) 820 x 670 x 855 mm
Weight 290 Kg (Approx.)

Key features

  • This compressor is used in Diesel Electric Multiple Unit (DEMU)
  • Suited for either direction of rotation i.e. clockwise or anticlockwise
  • Dynamically balanced, less vibration
  • Highly volumetric efficiency
RR 15070
Features

RR 15070

Features

W-type configuration, three cylinder, two-stage, oil splash lubricated,air-cooled and underslung mounting

Technical Specification

Free Air Delivery 1200 lpm (42.37 cfm)
Working Pressure 7 Kg/cm2
Overall Dimension (L x B x H) 1470 x 710 x 690mm
Weight 340 Kg (Approx - with mounting frame)

Key features

  • This is the first ‘W’ shape design air compressor developed for EMU’s and MEMU’s
  • Higher output for air spring suspensions and automatic doors
  • Under slung mounting design along with wire rope isolators
  • Introduced latest innovative design of ‘Hollow rotor shaft’ for motor, which eliminates conventional coupling
  • Less weight and compact design
TRC 1000 DCM
Features

TRC 1000 ACM (SPART)

Features

Inline configuration, three cylinder, two-stage, forced lubrication, air-cooled and direct coupled

Technical Specification

Free Air Delivery 1100 lpm (38.84 cfm)
Working Pressure 7 Kg/cm2
Overall Dimension (L x B x H) 1245 x 590x 540 mm
Weight 405 Kg (Approx.)

Key features

  • Compact and robust in design
  • Positive lubrication through ‘Oil Pump’
  • Provided with magnetic drain plugs to attract iron particles in the lubricating oil to provide purified lube oil
CRC 150
Features

CRC 150

Features

Mono-block vertical configuration, single cylinder, singlestage, oil splash lubricated and air-cooled.

Technical Specification

Free Air Delivery 100 lpm (3.52 cfm)
Working Pressure 8 Kg/cm2
Overall Dimension (L x B x H) 450 x 235 x 440 mm
Weight 55.5 Kg ( Approx.)

Key features

  • Small footprint
  • Easy to mount on locomotives and EMUs
  • Lifts the pantograph efficiently
  • Operates at 110V DC power supply
WRA-AC / DC
Features

WRA-AC / DC

Features

Mono-block vertical configuration, single cylinder, single-stage, oil splash lubricated, air-cooled and direct coupled

Technical Specification

Free Air Delivery 55 lpm (1.94 cfm)
Working Pressure 1.75 Kg/cm2
Overall Dimension (L x B x H) 640 x 285 x 410 mm
Electric Supply 415 V, 3 Phase, 50 Hz
Weight 45.5Kg ( Approx.)

Key features

  • Small footprint
  • Easy to mount on locomotives and EMUs
  • Lifts the pantograph efficiently
  • Operates at 110V DC power supply
RR66101 W
Features

RR66101 W

Features

W-type configuration, three cylinder, two-stage, forced lubrication, water-cooled and direct coupled coupled.

Technical Specification

Free Air Delivery 5663 lpm (200 cfm)
Working Pressure 10 Kg/cm2
Overall Dimension (L x B x H) 1368 x 662 x 1060 mm
Weight 710 Kg ( Approx.)

Key features

  • First ‘Water Cooled’ design compressor for Indian Railways
  • Meets air requirement of GM locomotives WDP4 and WDG4 built by Diesel Locomotives Works, Varanasi.
  • Improved crankshaft design for better impact resistance and strength
  • Convenient float type ‘oil level indicator’ and dip stick arrangement
  • High sump capacity ensures improved ergonomics & maintenance schedule
  • Effective heat transfer through ‘Shell & Tube’ cooling arrangement
  • Less vibration
RR 20100 CG (M)
Features

RR 20100 CG (M)

Features

W type configuration, three cylinder, two-stage, oil splash lubricated, air-cooled, direct coupled and underslung mounting. onboard variants available

Technical Specification

Free Air Delivery 1750 lpm (61.80 cfm)
Working Pressure 10.2 Kg/cm2
Overall Dimension (L x B x H) 1450 x 871x 768 mm
Weight 675 Kg ( Approx.)

Key features

  • These compressors are meant for new generation 3 - phase locomotives model WAG9 and WAP5, WAP7 manufactured by Chittaranjan Locomotives Works, Chittaranjan
  • Unique underslung mounting design for locomotives
  • Customer friendly, adopted flange type joints and easy access suction filters
  • Improved design to meet railway reliability maintenance cycle
  • Meeting additional air requirement of air spring suspension system introduced in high speed trains Duranto & Rajdhani
RR 201100 CC
Features

RR 20100 CC

Features

Oil Free, W type configuration, three cylinder, two-stage,air-cooled and direct coupled.

Technical Specification

Free Air Delivery 1000 lpm ( 42.38 cfm)
Working Pressure 10.5 Kg/cm2
Overall Dimension (L x B x H) 1170 x 715 x 820 mm
Weight 450 Kg ( Approx.)

Key features

  • 100% oil-free reciprocating compressor
  • Can be used in the place of existing lubricated compressor model TRC1000MN
  • PTFE coated & PTFE piston rings to ensure longer wear life.
  • Environment friendly
  • Enhances life for accessories like air dryer, pneumatic equipment etc
  • Easy to maintain
  • Lower maintenance expenditure
  • Unique suction through crankcase design for enhanced life of main bearings
  • Reduces noise level

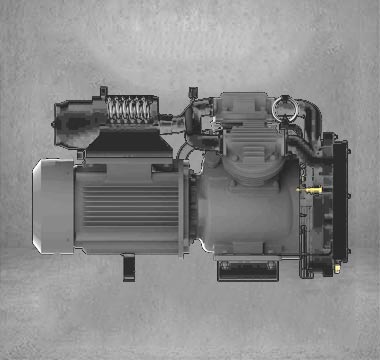

RR 20100 OF (M)
Features

RR 20100 OF (M)

Features

Oil free, W type configuration, three cylinder, two-stage, air-cooled, direct coupled, underslung & onboard variants available

Technical Specification

Free Air Delivery 1750 lpm (61.80 cfm)
Working Pressure 10.5 Kg/cm2 min
Overall Dimension (L x B x H) OF(M) usl :1290 x 695 x 765 mm OF(M) db :1170 x 695 x 798 mm
Weight 520 Kg ( Approx.)

Key features

  • 100% oil free reciprocating air compressor
  • PTFE coated & PTFE piston rings to ensure longer wear life
  • No lubrication required for pistons and cylinders
  • Efficient cooling ensure temperature rise 20 C above ambient
  • Reduce overall maintenance cost and environmental friendly air compressor

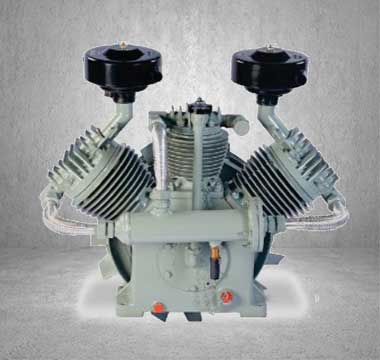

TRC 1000 B
Features

TRC 1000 B

Features

W-type configuration, three cylinder, two-stage, splash lubrication, air-cooled, V-belt drive

Technical Specification

Free Air Delivery 1000 lpm (35.3 cfm)
Working Pressure 8 Kg/cm2
Overall Dimension (L x B x H) 785 x 520 x 810 mm
Weight 125 Kg ( Approx.)

Key features

  • This compressor is specially developed for Shunting Locomotives WDS6 & DEMUs
  • Special design ‘Oil Bath’ air suction filters, which provides dust free suction air
  • Suited for either direction of rotation i.e. clockwise or anticlockwise
  • Flexible V- belt drive system on locomotives
ICRC 150
Features

ICRC 150

Features

Mono-block vertical configuration, single cylinder, single-stage, oil splash lubricated and air-cooled.

Technical Specification

Free Air Delivery 100 lpm (3.53 cfm)
Working Pressure 8 Kg/cm2
Overall Dimension (L x B x H) 450 x 235 x 350 mm
Weight 45.5 Kg ( Approx.)

Key features

  • Easy to mount on locomotives and EMU’s
  • For lifting pantograph of locomotives and EMU’s efficiently
  • Operates at 110V DC power supply

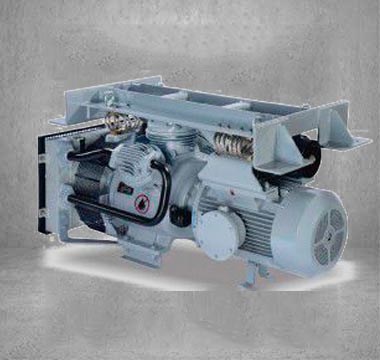

RR 14100 OF
Features

RR 14100 OF

Features

Oil Free, W type configuration, three cylinder, two-stage, air-cooled and direct coupled.

Technical Specification

Key features

  • 100% oil-free reciprocating compressor
  • Can be used in the place of existing lubricated compressor model TRC1000MN
  • PTFE coated & PTFE piston rings to ensure longer wear life
  • Environment friendly
  • Enhances life for accessories like air dryer, pneumatic equipment etc
  • Easy to maintain
  • Lower maintenance expenditure
  • Unique suction through crankcase design for enhanced
