Trident
Trident - Rail road products
Trident manufactures a range of rail road products to improve the quality of compressed air in braking systems. Trident has bagged various contracts for manufacturing the Rail Road Air dryers from world leaders.

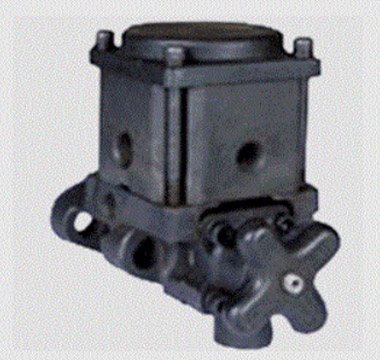

Valves
FeaturesValves
Features
- Designed for locomotive use : Meets all Environmental and functional specifications for the Railroad industry.
- Fixed Volume Automatic Drain valve drains condensate without wasting much of compressed air. It has a fail safe design.
- High MTBF
- Rugged cast iron construction.
- Integrated shutoff, manual and auto drain knob
Application
- Electric Locomotives
- Diesel Locomotives
- Commuter Locomotives
- Shunting Locomotives
- Mining applications
Trident Locomotive dryers are designed exclusively for the railroad industry for the following applications :

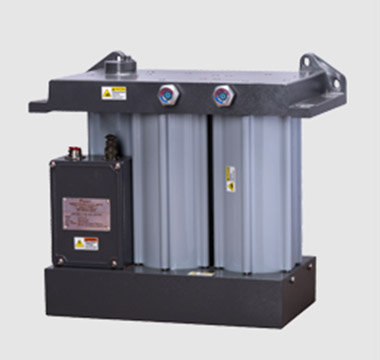

Air Dryers
FeaturesAir Dryers
Features
- Designed for locomotive use : Meets all Environmental and functional specifications for the Railroad industry. This dryer will withstand the vibrations, temperature in a locomotive platform out side the locomotive.
- Operates over a wide Voltage range.
- Non volatile memory system - The dryer is completely switched off when the compressor is off and restarts where the cycle was stopped. This increases the life of the dryer.
- Automatic Purge control valve : Adjusts purge air depending on the compressed air flow and pressure. This ensures guaranteed dew point at optimized purge loss. This also reduces compressor usage.
- Fixed Volume Automatic Drain valve drains condensate without wasting much of compressed air. It has a fail safe design.
- Optimised design to meet Input-output dewpoint depression requirement.
- Desiccant health indicator for each desiccant tower.
- Pre-filter health indicator.
- Low MTTR
- High MTBF
- All aluminum construction for corrosion free long life.
- Slide-In mount : The dryer can be slided in and out for service and installation in minutes, when installed in the mounting bracket (e.g. Trident MB1).
- Small size
- Dewpoint depression of 30oC at design airflow and 15oC at worst case of airflow and ambient temperature.
- Low pressure drop of 3% of inlet pressure at design air flow.
Application
- Electric Locomotives
- Diesel Locomotives
- Commuter Locomotives
- Shunting Locomotives
- Mining applications
Trident Locomotive dryers are designed exclusively for the railroad industry for the following applications :
